Jinrong New Materials Co., Ltd. is one of the leading manufacturers and suppliers of segmented truck tape in China. If you're going to buy durable segmented truck tape made in China, welcome to get quotation and free sample from our factory. All customized products are with high quality and competitive price.
Segmented Truck Tape Manufacturer

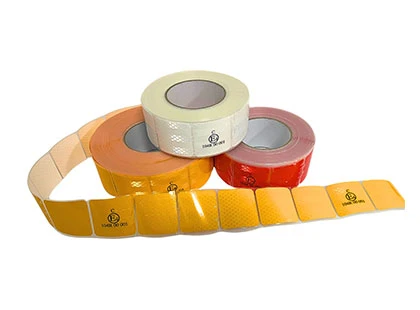

JINGRONG Segmented Reflective Truck and Trailer Tape is developed for surfaces where standard continuous reflective tape may wrinkle, bridge or lift. Individual microprismatic segments are held in alignment by a removable transfer film, making installation easier on curves, corrugations, riveted panels and complex vehicle contours.
After positioning and pressing the segments onto the prepared surface, the transfer film is removed, leaving evenly spaced reflective elements. This construction supports a neat appearance while allowing greater flexibility between segments. It is suitable for trucks, trailers, tankers, buses, equipment and specialized vehicle bodies.
The segmented series is available in white, yellow and red, with standard 2-inch by 50-meter rolls and customized segment dimensions. Both economical 2900 and premium 9500-type constructions may be offered, with reference durability up to 3–5 years for selected models.
Markings may reference ECE 104R, DOT-C2 or SASO 2913 depending on the product version. The exact regulatory model and documentation should be confirmed before ordering. For best results, test the segment spacing, transfer-film release and adhesion on the actual curved or corrugated surface.
Segmented Truck Tape Advantages
• Pre-cut reflective segments
• Transfer film supports fast, aligned installation
• Conforms better to curves and irregular surfaces
• Microprismatic visibility
• Waterproof PSA construction
• Custom segment length, spacing and roll size
Applications
Curved truck bodies; corrugated trailers; tankers; buses; equipment panels; riveted surfaces; specialized commercial vehicles; machinery safety marking.
Technical Specifications
| Series/model | Segmented Reflective Truck Tape 2900/9500 |
| Construction | segmented microprismatic elements with transfer film |
| Material reference | PET + PVC |
| Adhesive | pressure-sensitive adhesive (PSA) |
| Standard size | 2 in × 50 m |
| Colors | white, yellow, red |
| Reference durability | model-dependent, up to 3–5 years |
| Marking options | ECE 104R, DOT-C2, SASO 2913 (model-dependent) |
FAQ
Q: Why use segmented tape on curved surfaces?
A: Gaps between the segments allow the reflective marking to follow curves, corrugations and irregular panels with less wrinkling or lifting than a continuous strip.
Q: What does the transfer film do?
A: The transfer film keeps the segments aligned during positioning and application. It is removed after the reflective segments are pressed firmly onto the surface.
